Apple iPhone 12 Red SIM Tray Replacement

Product Overview

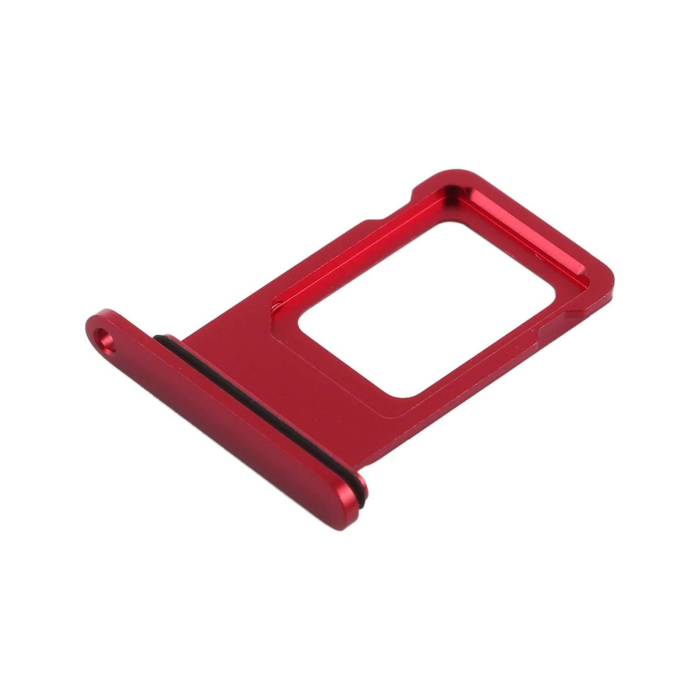

SIM trays across Apple's iPhone 12 lineup are not interchangeable — the iPhone 12, 12 Mini, 12 Pro, and 12 Pro Max each use a different tray design despite sharing the same generation name. This red plastic replacement tray fits the standard iPhone 12 only. It restores your phone's single Nano-SIM slot to working order, letting you get back to using your physical SIM alongside Apple's eSIM functionality.

Compatibility Details

This tray is built for the Apple iPhone 12 (model numbers A2172, A2402, A2403, A2404). The iPhone 12 uses a Nano-SIM + eSIM configuration — the physical tray holds one Nano-SIM card, while your second line operates through Apple's built-in eSIM. There is no microSD card slot on any iPhone.

Models that will NOT fit this tray:

• iPhone 12 Mini (A2176) — significantly smaller body at 131.5 x 64.2mm means a completely different tray size
• iPhone 12 Pro (A2407) — despite identical external dimensions (146.7 x 71.5mm), the Pro uses a stainless steel frame with a different tray mechanism than the aluminum iPhone 12
• iPhone 12 Pro Max (A2342) — much larger at 160.8 x 78.1mm with a different tray design
• iPhone 11 (A2111, A2221) — thicker body at 8.3mm versus the iPhone 12's 7.4mm, different tray dimensions
• iPhone 13 (A2482, A2631) — slightly thicker at 7.65mm with a redesigned internal layout and different tray fit

Device-Specific Context

The iPhone 12 carries an IP68 water resistance rating, meaning it can handle submersion in up to 6 meters of water for 30 minutes. The SIM tray plays a direct role in maintaining this seal — it includes a rubber gasket around its edge that prevents water from entering through the SIM slot. When installing this replacement tray, make sure the gasket sits flush and undamaged. Press the tray in firmly until it's completely even with the aluminum frame. After installation, avoid exposing the phone to water for at least 12 hours to let the seal settle. The iPhone 12's glass front and back with aluminum frame demand a tray that fits precisely — any gap compromises both the water seal and the clean aesthetic of Apple's design. With MagSafe charging and Ceramic Shield protection, your iPhone 12 is built to last, and a properly fitted tray keeps it fully functional.

Color Matching

This Red tray is a direct match for the (PRODUCT)RED variant of the iPhone 12. Apple released the iPhone 12 in six colors: Black, White, Red, Green, Blue, and Purple. If your iPhone 12 is a different color, check our other SIM tray listings on dastyab.pk to find the exact match for your device.

Practical Information

Since the iPhone 12 is IP68-rated, pay attention to the rubber gasket on the replacement tray before inserting it. If the gasket appears damaged or misaligned, the water resistance of your phone could be compromised. Use the SIM ejector tool (or a straightened paperclip) to remove the old tray, transfer your Nano-SIM card, and slide the new tray in until it clicks flush with the frame. Available now at dastyab.pk with cash on delivery across Pakistan.
