Infinix Smart 7 Middle Frame Housing with Side Button and Battery Back Door, White

About this product

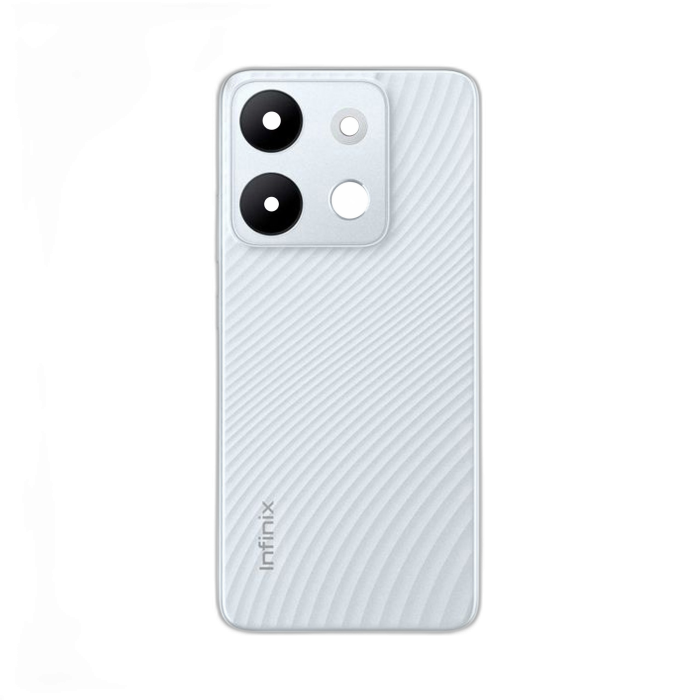

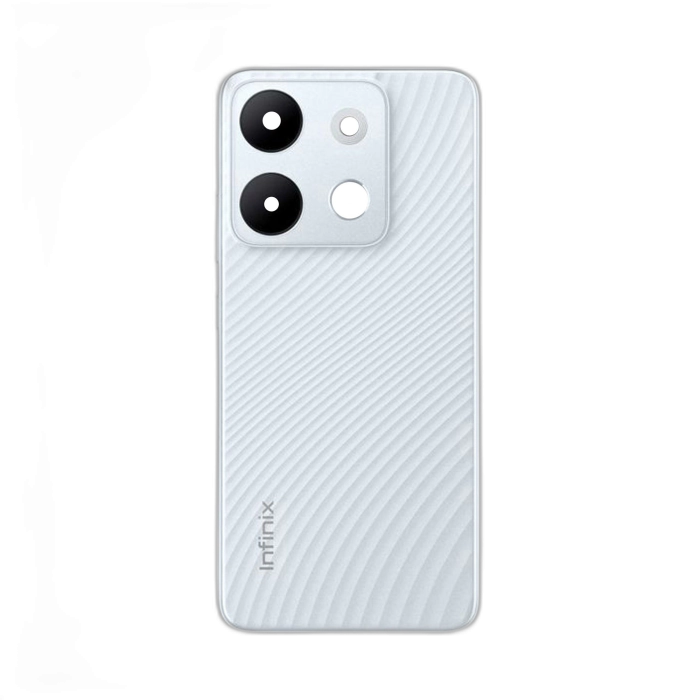

This is a replacement middle frame housing with pre-fitted side buttons and a matching battery back door, built for the Infinix Smart 7 (2023) only. It is meant for repair situations where the original chassis has cracked, the volume or power buttons no longer register properly, or the battery back door has snapped, chipped, or lost its clip tension. The frame is sized to the Smart 7's exact chassis footprint of 163.8 x 75.5 x 8.5mm and reproduces the plastic back-and-frame construction Infinix used on this model, so the swap doesn't change the phone's original 184g weight or hand feel once reassembled. Because the Smart 7 ships with a 5000mAh battery and a rear-mounted plain back, the back door here is shaped as a flat cover panel rather than a curved or textured one.

• Middle frame plus battery back door supplied as one housing set
• Side button assembly (power and volume) pre-mounted into the frame
• Cutout positioned for the single 13MP rear camera module
• Bottom cutout matched to the Micro-USB charging port, not USB-C
• Frame dimensions built to the 163.8 x 75.5 x 8.5mm Smart 7 chassis
• Speaker and headphone jack openings included, since the Smart 7 retains a 3.5mm jack

How it fits your Infinix Smart 7

The frame is dimensioned against the Smart 7's 163.8 x 75.5 x 8.5mm body, so the SIM tray channel, speaker grille, and microphone openings line up with where Infinix placed them on this specific model, including the dual Nano-SIM tray slot. The rear camera cutout is cut for the single 13MP lens housing used on the Smart 7 rather than a multi-lens array, so if your unit's camera bump doesn't match a single round or square opening, you likely have a different Infinix model. The bottom edge opening is sized for a Micro-USB port, matching the Smart 7's 10W Micro-USB charging setup rather than USB-C, so it will not fit a device that has since been repaired with a USB-C daughterboard. Side buttons are pre-seated in the frame at the same height as the original tooling, and the top edge leaves clearance for the 6.60-inch IPS LCD panel to seat into the frame lip without pressure on the display glass. Because this is a structural housing and not a soft cover, it replaces the phone's outer skeleton rather than adding a layer over it.

What you should know

This listing covers the Infinix Smart 7 only; it is not built for the Smart 6, Smart 7 HD, Smart 8, or Note series, which use different frame dimensions and camera cutouts, so please confirm your exact model before ordering. White is not one of the Smart 7's original factory colors — Infinix sold this device in Peacock Blue, Polar Black, Emerald Green, and Amazon Blue — so this White housing is an aftermarket replacement finish, useful for a repair or a style change, but it will not be an exact factory color match if that matters to you. This part supplies the back door cover and frame only; it does not include the battery cell itself, so if your actual 5000mAh battery is degraded or swollen, you will need a separate battery alongside this housing. Fitting a new middle frame involves opening the chassis, disconnecting internal ribbon cables, and reseating the battery and buttons, which can affect your device's warranty status and carries a real risk of damaging connectors if rushed — we recommend having this installed by a qualified phone repair technician rather than attempting it without experience.

Buying with confidence

Dastyab.pk ships this Infinix Smart 7 housing set across Pakistan and accepts returns within 7 days on unused, uninstalled items, so you can check the fit against your device before committing to installation. This listing is written against the Smart 7's published specifications rather than generic accessory copy, so the fit details above reflect the actual device dimensions and port layout.
