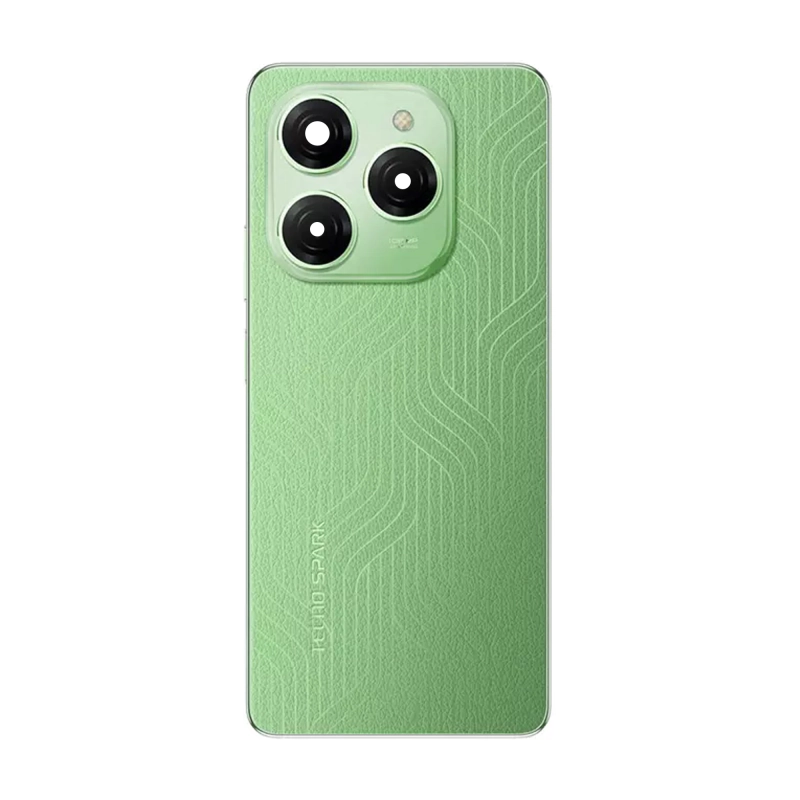

Tecno Spark 20 Pro Replacement Middle Frame Housing with Battery Back Door - Green

About this product

This is a replacement middle frame housing built for the Tecno Spark 20 Pro, covering the phone's structural mid-chassis, the side button assembly (power and volume), and a matching battery back door in Green. It is meant for repair and refurbishment work when the original frame or rear door is cracked, bent, or has come loose from the display assembly on a 168.6 x 77.0 x 8.5mm, 198g device. Because the Spark 20 Pro ships with a plastic frame and back, this housing is molded to match that same construction rather than a metal or glass-backed design. The color is matched to the Magic Skin Green finish Tecno used on this model, so it sits alongside the brand's original Magic Skin Blue, Glossy White, and Starry Black variants without an obvious color mismatch after a repair.

• Full middle frame shell sized to the 6.78-inch display footprint of the Spark 20 Pro
• Integrated side button housing for the power and volume rocker assembly
• Rear battery back door finished in Magic Skin Green to match factory color options
• Cutout aligned to the 50MP + 2MP rear camera module placement
• Port opening sized for the device's USB-C charging connector
• Speaker and microphone venting positioned to match the original chassis layout

How it fits your Tecno Spark 20 Pro

The frame is dimensioned for the exact 168.6 x 77.0 x 8.5mm body of the Spark 20 Pro, so the display bonds into the chassis at the same seam line as the original part, and the 6.78-inch IPS LCD panel with its 2460x1080 resolution and 120Hz refresh rate sits flush once reassembled. The rear camera cutout is shaped for the 50MP + 2MP dual-camera array, and the charging port opening is cut for USB-C, matching the Spark 20 Pro's 18W wired charging input (this model has no wireless charging, so no coil cutout is needed on the back door). Side button housings are molded for tactile power and volume response, and the dual nano-SIM tray slot and 3.5mm headphone jack opening are positioned to match the original chassis. Because the back door is a separate part from the display, it does not affect the 120Hz panel itself, but a poorly seated frame can affect how flush the glass sits against the bezel.

What you should know

This housing is built for the Tecno Spark 20 Pro only. It is not interchangeable with the standard Tecno Spark 20, Spark 20C, or Spark 10 Pro, even though the naming looks similar — those models have different dimensions and camera placements. This is a structural and cosmetic replacement part: it restores the phone's frame, buttons, and back cover, but it does not include the battery, display, motherboard, or camera modules themselves, and it will not repair software issues or component-level damage. Fitting a new middle frame means partially disassembling the phone, transferring the existing internal components across, and reseating the battery connector, so we recommend this installation be done by a qualified phone repair technician rather than as a first-time DIY job. Opening the device yourself may affect any remaining manufacturer warranty on the phone, and disconnecting or reseating a battery incorrectly carries real risk, so handle the battery connector with care during transfer.

Buying with confidence

Dastyab.pk accepts returns within 7 days on unused, uninstalled items if this frame doesn't match your Spark 20 Pro or arrives damaged, and we deliver across Pakistan. This listing is written against Tecno's published Spark 20 Pro specifications so you can check fit against your own device before you order.
