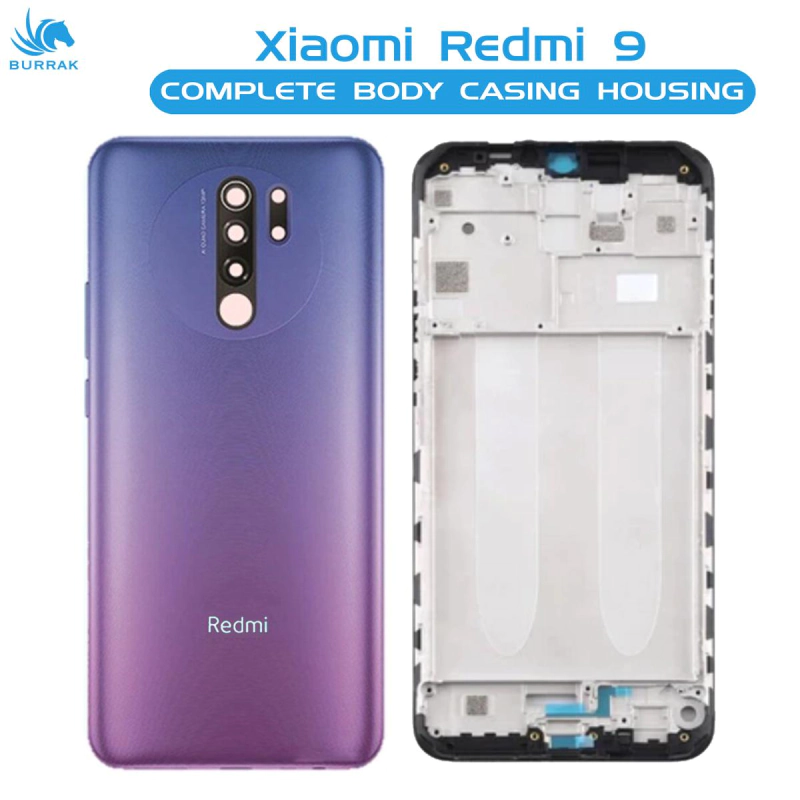

Xiaomi Redmi 9 Sunset Purple Middle Frame Housing With Camera Lens and Side Buttons

About this product

This is a middle frame (chassis) housing replacement for the Xiaomi Redmi 9, finished in Sunset Purple to match the device's Purple colour option. Unlike a snap-on cover, this is a structural body part built for technicians and confident DIY users rebuilding a Redmi 9 that has a bent, cracked, or corroded frame, a damaged camera lens housing, or failing side buttons. The frame is sized to the Redmi 9's 163.3 x 77.0 x 9.1mm chassis and 198g body, and it carries a pre-fitted camera lens bracket cut for the phone's quad rear camera array (13MP main + 8MP ultra-wide + 5MP macro + 2MP depth), plus the power and volume side buttons and the SIM tray channel.

• Camera lens cutout and bracket matched to the 13MP + 8MP + 5MP + 2MP quad rear camera
• Power and volume side buttons pre-fitted at the Redmi 9's standard positions
• Micro-USB charging port cutout, matching the Redmi 9's Micro-USB port (not USB-C)
• Frame footprint built to the 163.3 x 77.0 x 9.1mm chassis dimensions
• Dual Nano-SIM tray channel for the Redmi 9's SIM configuration
• Sunset Purple finish colour-matched to the Redmi 9's Purple variant

How it fits your Xiaomi Redmi 9

The Redmi 9 has a plastic body with a glass front over its 6.53-inch IPS LCD display, protected by Gorilla Glass 3, and this frame is shaped to seat that front assembly correctly along its edges without pressure on the panel. The camera lens opening lines up with the quad-camera module on the rear, so all four lenses (13MP, 8MP, 5MP, 2MP) sit flush rather than recessed or angled. The charging cutout is sized for the Redmi 9's Micro-USB port and its 18W charging input, and the frame also leaves the headphone jack opening clear, since the Redmi 9 retains a 3.5mm port. The IR blaster window is positioned to match the Redmi 9's built-in IR blaster, and the side-button channel is cut for the device's power and volume key travel so the buttons click rather than feel mushy once reassembled. Internally, the frame's mounting points are shaped to hold the mainboard and the 5020mAh battery in the same position as the original Redmi 9 housing, which matters for how the rear panel seats afterward.

What you should know

This listing covers the Xiaomi Redmi 9 only, in the Sunset Purple finish — it is not sized for the Redmi 9A, Redmi 9C, Redmi 9T, or Redmi 9 Prime, which use different board layouts and camera cutouts, so do not order this for those models even though the names are similar. This is a structural replacement part, not a protective case: it does not add drop cushioning or scratch resistance beyond what the Redmi 9's original plastic-and-glass build already has, and it will not compensate for a cracked screen or a damaged Gorilla Glass 3 panel, which still needs separate replacement. Fitting this frame means opening the phone, transferring the mainboard, battery, camera modules, and buttons across, and reassembling the display — this is not a task for someone who has never opened a phone before, and doing it yourself will very likely void any remaining manufacturer warranty on your Redmi 9. We recommend professional installation by a qualified repair technician, particularly around the battery and camera ribbon connectors, to avoid damaging components that are not being replaced.

Buying with confidence

Dastyab.pk ships this Redmi 9 middle frame housing across Pakistan and accepts returns within 7 days on unused, uninstalled items — check the frame against your device's colour and camera layout before fitting it, since an installed frame cannot be returned. This listing (SKU casing-01895) is written against the Xiaomi Redmi 9's published specifications so you can confirm fit before you buy rather than after you've opened your phone.
