Xiaomi Redmi Note 9 Pro Rear Back Panel Housing Replacement - Grey

About this product

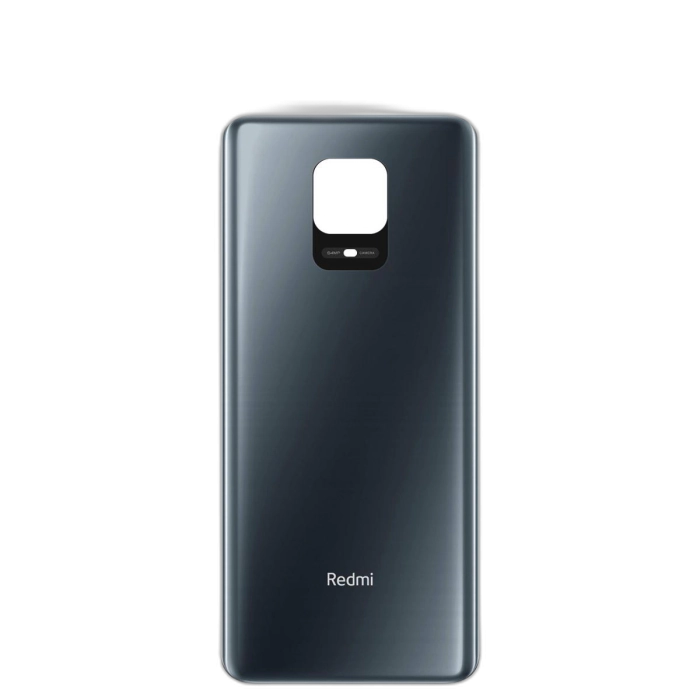

This is a replacement rear back panel (battery back door / housing) built specifically for the Xiaomi Redmi Note 9 Pro, a 165.75 x 76.68 x 8.8mm, 209g device that ships from the factory with a glass front and back panel over a plastic frame. The cutout layout is mapped to the Redmi Note 9 Pro's quad rear camera array (48MP + 8MP + 5MP + 2MP) and its LED flash, so the lens openings and camera bump align without needing to file or trim the housing. It is intended for phones with visible rear-panel damage, cracked back glass, or a body that needs a color refresh, and it restores the structural back covering rather than adding external protection. This listing covers the Grey colorway only.

• Camera cutout matched to the 48MP + 8MP + 5MP + 2MP quad rear array and flash position
• Cutout for the bottom-edge USB-C charging port used for the device's 33W wired charging
• Side openings for the volume rocker and the power button on the device's right edge
• Top-edge cutout for the IR blaster
• Left-edge slot cutout for the dual Nano-SIM + microSD hybrid tray
• Grey finish as an aftermarket color option

How it fits your Xiaomi Redmi Note 9 Pro

Because the Redmi Note 9 Pro measures 165.75 x 76.68 x 8.8mm and weighs 209g, the housing is dimensioned to that exact footprint so the replaced back sits flush with the plastic mid-frame rather than overhanging the edges or leaving gaps at the frame seam. The camera island cutout is positioned for the quad 48MP+8MP+5MP+2MP module, so the lenses sit level with the housing opening the way they do on the factory glass back. Button cutouts line up with the volume rocker and side-mounted power/fingerprint button, and the bottom USB-C port opening matches the charging port used for the device's 33W fast charging. The device's original back is glass paired with a plastic frame and carries a P2i splash-resistant coating applied at the factory — this replacement housing is a structural/cosmetic part, not a glass panel with that coating, so any splash resistance the phone previously had is not automatically carried over once the back is swapped.

What you should know

This housing is verified to fit the Xiaomi Redmi Note 9 Pro only — it is not compatible with the standard Redmi Note 9, the Redmi Note 9S, or the Redmi Note 9 Pro Max, which use different camera housings and body dimensions. Grey is not one of Xiaomi's five factory finishes for this model (Interstellar Black, Glacier White, Aurora Blue, Champagne Gold, Tropical Green), so treat this as an aftermarket color rather than an OEM color match. The Redmi Note 9 Pro's NFC antenna and flash flex cable are typically built into the original back cover assembly, not into a replacement housing, so a technician will usually need to transfer these components (and the camera lens ring, if separate) from your old back cover onto this one during fitting. This is a structural/cosmetic housing replacement, not a battery, and does not itself affect battery performance, but opening the phone to fit it does involve prying adhesive seals and disconnecting internal flex cables — we recommend professional installation, and doing this yourself may affect any remaining device warranty or splash resistance.

Buying with confidence

Dastyab.pk backs this listing with a 7-day return policy on unused, uninstalled items, so you can check the fit and finish before committing to installation. We ship this Redmi Note 9 Pro rear housing (SKU casing-01986) across Pakistan, and the compatibility details above are checked against the Redmi Note 9 Pro's published specifications rather than generic listing copy.
